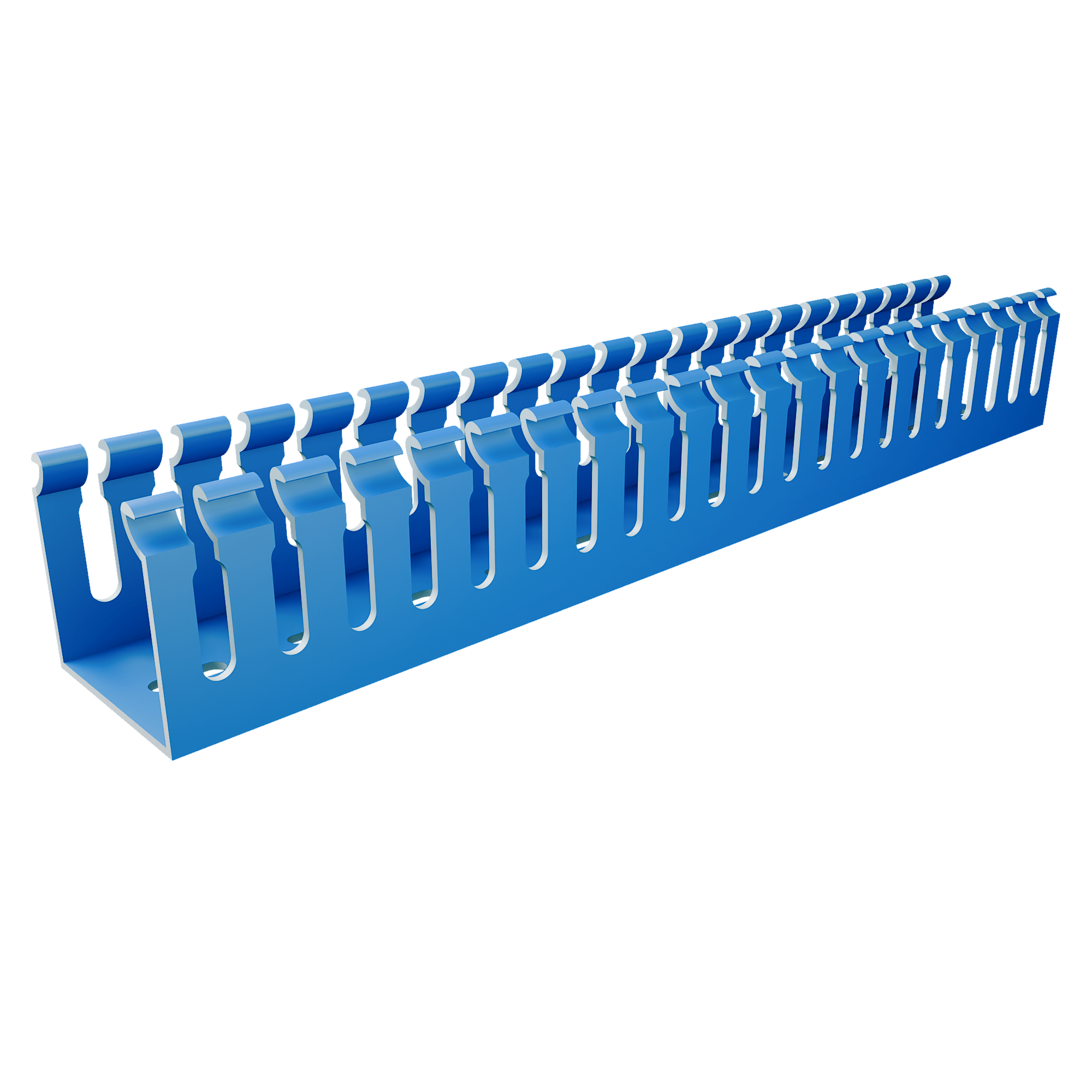

Blue Standard PVC Wiring Duct Series - Image 2

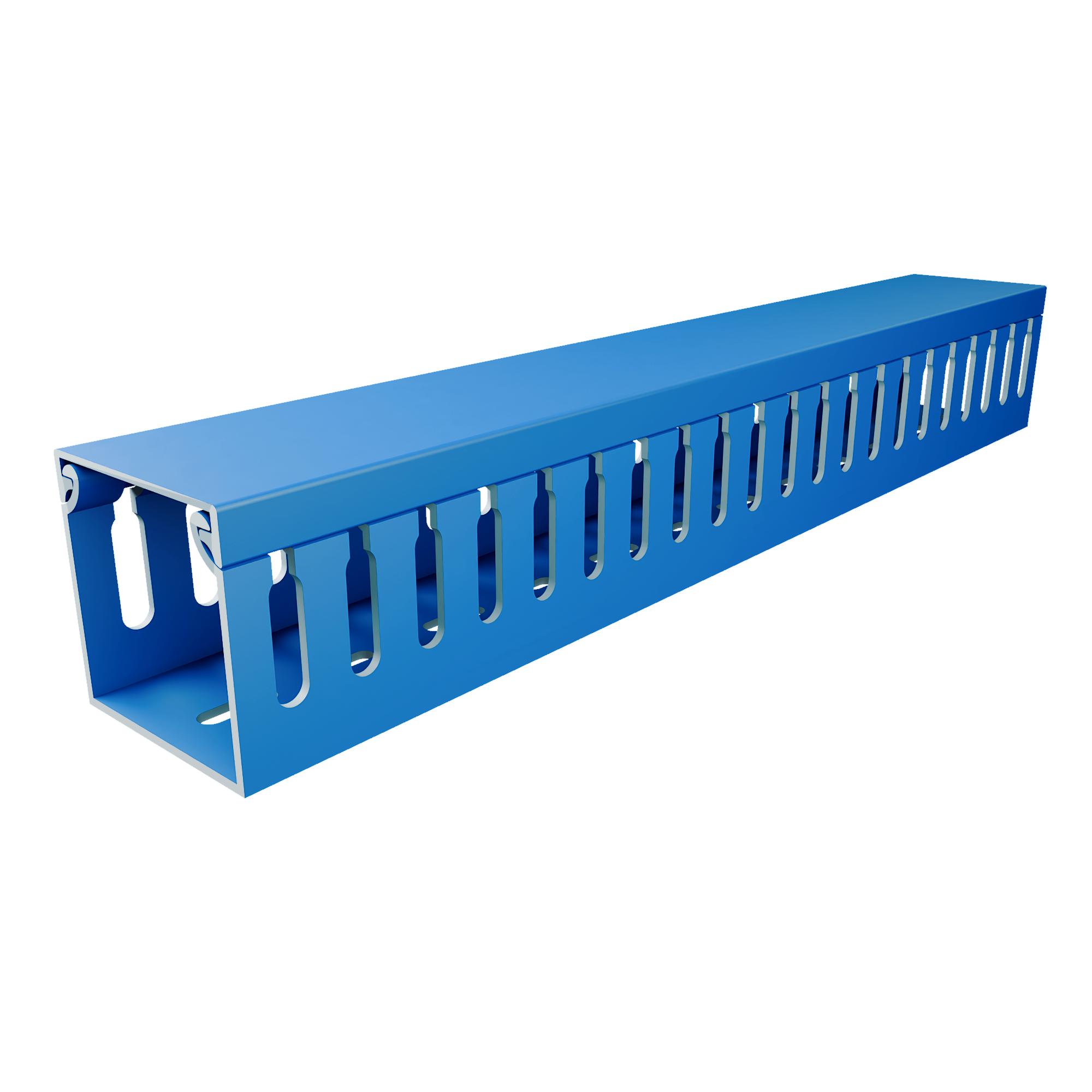

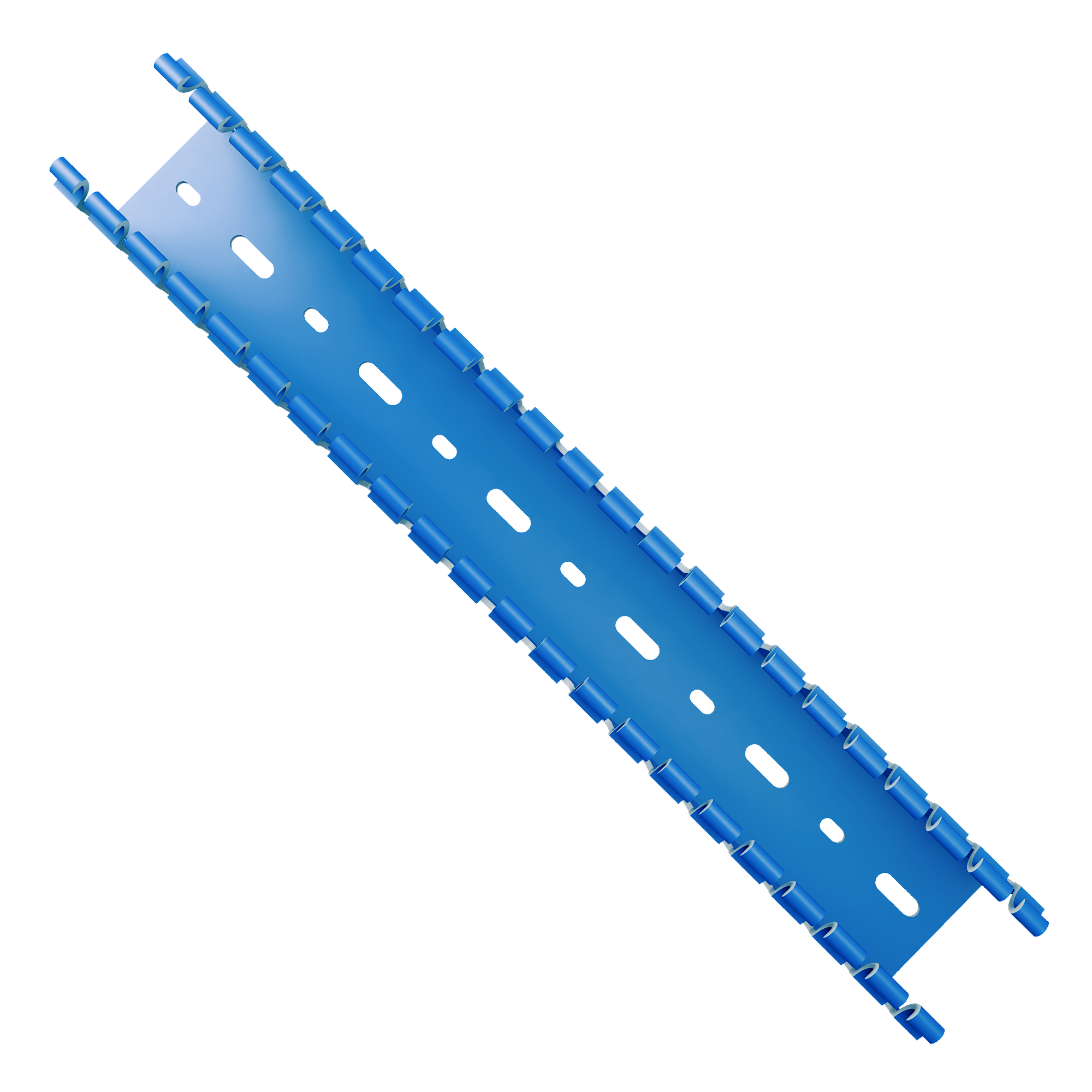

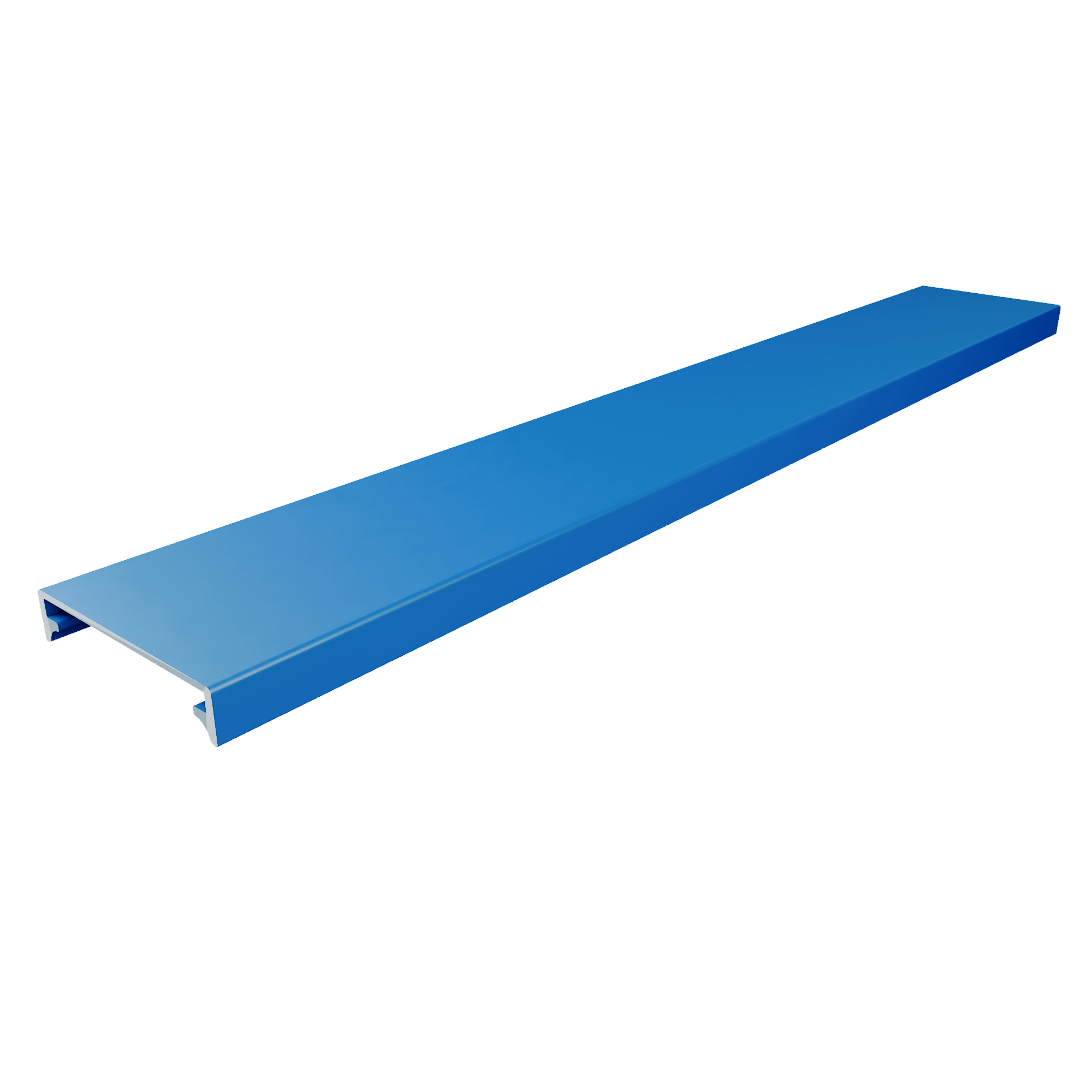

Blue Standard PVC Wiring Duct Series

Cost-effective Standard PVC wiring duct for industrial control cabinets and automation panels. High-quality rigid PVC, UL94 V-0 flame rating, operating temperature -25°C to +70°C, with OEM support.

Request a Quote

Factory DirectDirect B2B supply

OEM / ODMAvailable

MOQ500 m

Lead Time15-20 days

Global ShippingEurope & Asia supported

Quality InspectionProduction quality control

Category: PVC Wiring Duct

Technical Specifications

Model

Standard PVC Wiring Duct Series

Working Temperature

-25°C to +70°C

Material

PVC

Package

2 m lengths, export carton

Color

Blue

MOQ

500 m

Flame Rating

UL94 V-0

Lead Time

15-20 days

Description
Reviews (0)

Description

The RCLHEP Standard PVC Wiring Duct series is a versatile and cost-effective wiring duct, designed for efficient cable management inside industrial control cabinets, automation panels, and electrical enclosures. Manufactured from high-quality eco-friendly PVC material, it features excellent waterproof and dustproof performance, good flame-retardant properties, as well as outstanding corrosion and moisture resistance, making it highly suitable for general-purpose OEM applications and panel-building scenarios.

Available in multiple sizes with a standard supply length of 2 meters. We provide OEM label customization, packaging customization, and project-specific technical support for global B2B customers.

Reviews

There are no reviews yet.

Be the first to review “Blue Standard PVC Wiring Duct Series”

Available Models / Sizes

Model	Height	Width	Length	Carton Quantity	Carton Weight	MOQ	Product
PXC4025	25 mm	40 mm	2 m	50 pcs	31.5 kg	500 m	View Product
PXC3030	30 mm	30 mm	2 m	50 pcs	28.6 kg	500 m	View Product
PXC3530	30 mm	35 mm	2 m	50 pcs	33.2 kg	500 m	View Product
PXC2535	35 mm	25 mm	2 m	50 pcs	31.2 kg	500 m	View Product
PXC3035	35 mm	30 mm	2 m	50 pcs	34.9 kg	500 m	View Product
PXC3535	35 mm	35 mm	2 m	50 pcs	34.5 kg	500 m	View Product
PXC2040	40 mm	20 mm	2 m	50 pcs	30.6 kg	500 m	View Product
PXC2540	40 mm	25 mm	2 m	50 pcs	32.4 kg	500 m	View Product
PXC3040	40 mm	30 mm	2 m	50 pcs	35.6 kg	500 m	View Product
PXC3540	40 mm	35 mm	2 m	50 pcs	37.8 kg	500 m	View Product
PXC4040	40 mm	40 mm	2 m	50 pcs	41 kg	500 m	View Product
PXC5040	40 mm	50 mm	2 m	50 pcs	44.7 kg	500 m	View Product
PXC6040	40 mm	60 mm	2 m	50 pcs	49.9 kg	500 m	View Product
PXC2545	45 mm	25 mm	2 m	50 pcs	35.2 kg	500 m	View Product
PXC3545	45 mm	35 mm	2 m	50 pcs	41.3 kg	500 m	View Product
PXC4545	45 mm	45 mm	2 m	50 pcs	49 kg	500 m	View Product
PXC2050	50 mm	20 mm	2 m	50 pcs	33.8 kg	500 m	View Product
PXC2550	50 mm	25 mm	2 m	50 pcs	37 kg	500 m	View Product
PXC3050	50 mm	30 mm	2 m	50 pcs	43 kg	500 m	View Product
PXC3550	50 mm	35 mm	2 m	50 pcs	43.5 kg	500 m	View Product
PXC4050	50 mm	40 mm	2 m	50 pcs	49 kg	500 m	View Product
PXC4550	50 mm	45 mm	2 m	50 pcs	50 kg	500 m	View Product
PXC5050	50 mm	50 mm	2 m	50 pcs	52 kg	500 m	View Product
PXC5550	50 mm	55 mm	2 m	40 pcs	43.5 kg	500 m	View Product
PXC6050	50 mm	60 mm	2 m	40 pcs	45.6 kg	500 m	View Product
PXC8050	50 mm	80 mm	2 m	30 pcs	45.7 kg	500 m	View Product
PXC10050	50 mm	100 mm	2 m	30 pcs	53 kg	500 m	View Product
PXC2560	60 mm	25 mm	2 m	50 pcs	42.7 kg	500 m	View Product
PXC3060	60 mm	30 mm	2 m	50 pcs	42.9 kg	500 m	View Product
PXC3560	60 mm	35 mm	2 m	50 pcs	48 kg	500 m	View Product
PXC4060	60 mm	40 mm	2 m	50 pcs	52 kg	500 m	View Product
PXC4560	60 mm	45 mm	2 m	50 pcs	52.7 kg	500 m	View Product
PXC5060	60 mm	50 mm	2 m	50 pcs	48.1 kg	500 m	View Product
PXC6060	60 mm	60 mm	2 m	30 pcs	35.6 kg	500 m	View Product
PXC8060	60 mm	80 mm	2 m	30 pcs	45.7 kg	500 m	View Product
PXC10060	60 mm	100 mm	2 m	30 pcs	54.5 kg	500 m	View Product
PXC2565	65 mm	25 mm	2 m	50 pcs	43.5 kg	500 m	View Product
PXC3565	65 mm	35 mm	2 m	50 pcs	50.8 kg	500 m	View Product
PXC4565	65 mm	45 mm	2 m	50 pcs	58.5 kg	500 m	View Product
PXC6565	65 mm	65 mm	2 m	30 pcs	42 kg	500 m	View Product
PXC2580	80 mm	25 mm	2 m	30 pcs	31 kg	500 m	View Product
PXC3080	80 mm	30 mm	2 m	30 pcs	35 kg	500 m	View Product
PXC3580	80 mm	35 mm	2 m	30 pcs	36 kg	500 m	View Product
PXC4080	80 mm	40 mm	2 m	30 pcs	37.4 kg	500 m	View Product
PXC4580	80 mm	45 mm	2 m	30 pcs	40 kg	500 m	View Product
PXC5080	80 mm	50 mm	2 m	30 pcs	42 kg	500 m	View Product
PXC5580	80 mm	55 mm	2 m	30 pcs	43 kg	500 m	View Product
PXC6080	80 mm	60 mm	2 m	30 pcs	43.6 kg	500 m	View Product
PXC8080	80 mm	80 mm	2 m	18 pcs	32.5 kg	500 m	View Product
PXC10080	80 mm	100 mm	2 m	18 pcs	37.8 kg	500 m	View Product
PXC33100	100 mm	33 mm	2 m	30 pcs	44 kg	500 m	View Product
PXC40100	100 mm	40 mm	2 m	30 pcs	49 kg	500 m	View Product
PXC50100	100 mm	50 mm	2 m	30 pcs	54.5 kg	500 m	View Product
PXC60100	100 mm	60 mm	2 m	30 pcs	47.1 kg	500 m	View Product
PXC80100	100 mm	80 mm	2 m	18 pcs	38.3 kg	500 m	View Product
PXC100100	100 mm	100 mm	2 m	18 pcs	41.7 kg	500 m	View Product
